Audio Expert
FORENSIC AUDIO ANALYSIS WORKSTATION
Audio Expert is a powerful forensic audio examination set which provides a wide spectrum of solutions and reflects the most contemporary demands of professional audio experts in:
-
Identification – Investigating the recordings for equity of people or equipment used.
-
Authenticity analysis – Investigation of tampering/editing or verification of recorded media.
-
Text decoding – Creating the environment to retrieve the contents of poor quality recorded conversations such as investigation of ‘black boxes’, telephone, radio and other recordings.
-
Reporting – Preparing detailed expert reports to be used for legal evidence.
The software allows you to perform the most advanced tasks of audio expertise with ease, which were previously complex and extremely time consuming.
The solution has a component structure, integrating several optional modules into the core speech analysis environment.
Additional optional modules include:
FUNCTIONALITY:
Forensic Speaker Identification with fast and accurate in-depth speech visualization, supported by:
Recording and playbackfor easy audio organization:
Forensic Speaker Analysis:
-
Automatic extraction of speaker characteristics.
-
Pitch and formant traces extractor, manual correction options via visual control.
-
Calculation, comparison, and storing of pitch and formants statistics.
-
MS Word export.
Text decoding is supported by a comprehensive text editor, featuring:
Editing. High-pass, low-pass, band-pass, inverse filtering. FIR, IIR filtering. Easy settings access.
Authenticity analysis provided with EdiFinder module delivers:
Audio Expert provides single multitasking environment to solve every forensic audio task at the highest professional level.
EXAMPLES:
Segmentation of Recordings.

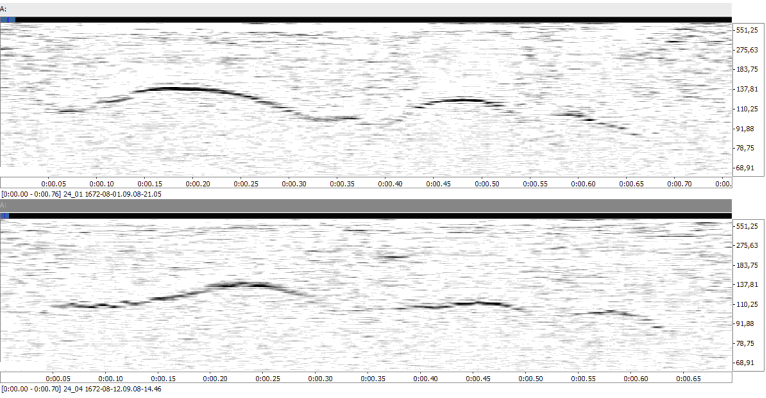

Speaker Identification – Pitch Analysis.
Pitch distributions comparison.
Comparison of prosodic constructions, used by speaker in two recordings.
Formant Analysis.

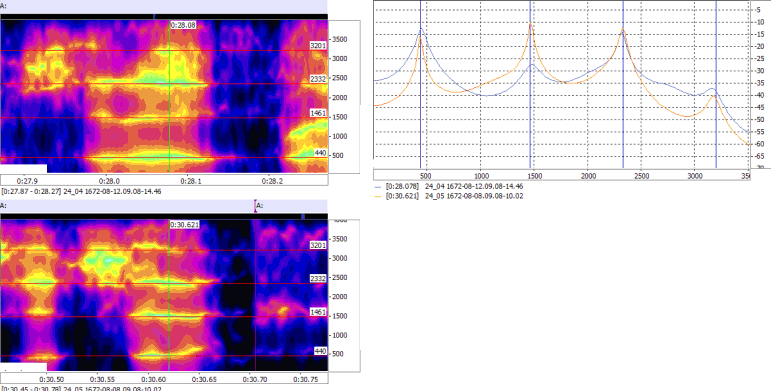

Comparison of [e]-like phoneme pronounced by speaker in two different recordings.
F1=440Hz, F2=1460Hz, F3=2330Hz, F4=3200Hz.

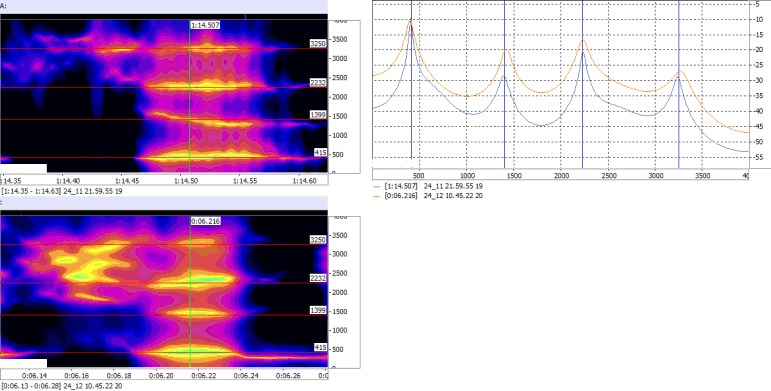

Comparison of [o]-like phoneme pronounced by speaker in two different recordings.
F1=420Hz, F2=1400Hz, F3=2230Hz, F4=3250Hz.
Spectra of Consonants:
Authentication Analysis.

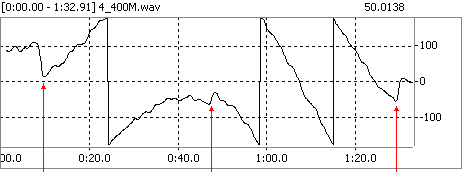

Brakes of Harmonics’ Phase:
Small brakes and smoothed changing of power-supply (50Hz) harmonics’ phase.

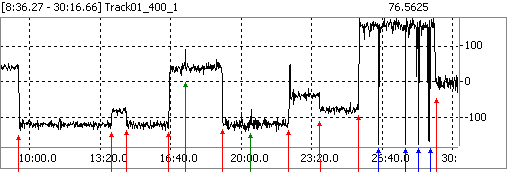

Brakes of 76.56Hz harmonics’ phase.

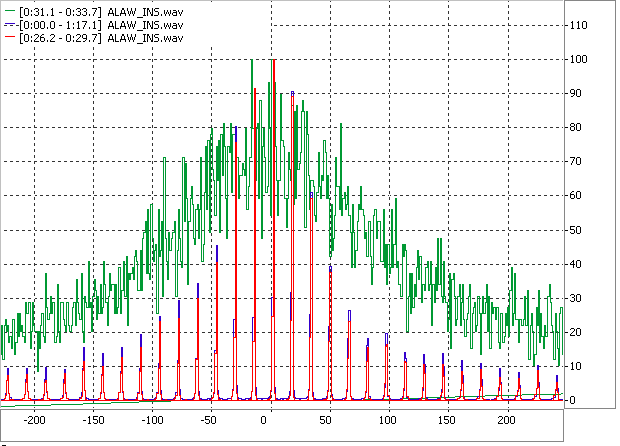

Insert of 16-bit interval into A-law compressed file.
Pricing:
* Quantity discount pricing available.
* 1 year warranty
